Name: High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Huis > producten > Vroegproefsonden >

High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

brass spring loaded PCB pin

4 pin PCB contact probe

spring test probes for electronics

Plaats van herkomst:

China

Merknaam:

WINNER

Certificering:

ISO9100

Contacteer ons

Verzoek om een Citaat

High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

Productdetails

Productnaam:

veerproefsonde

loop:

PB, goudkleurig

Onderste plunjer:

BeCu/SK4, verguld

TOP plunjer:

SK4(Be Cu)/Verguld

Lente:

SWPB(SUS)/Verguld

Beschikbaarheid:

Aangepaste maten beschikbaar

Coating:

Verguld met goud

Huidige beoordeling:

Neem contact op met Weerstand:

Maximaal 100 MOhm

Bandbreedte:

-0,98 dB @ 19,6 GHz

inductie:

1,27 nH

Captance:

1,67 pF

Volledige slag:

1,25 mm

Nominale slag:

0,9 mm

Vlamkracht:

43 gram bij 0,9 mm

De mechanische levensduur is overschreden:

200k

Markeren:

brass spring loaded PCB pin

4 pin PCB contact probe

spring test probes for electronics

Betaling & het Verschepen Termijnen

Min. bestelaantal

3000 pccs

Prijs

999

Verpakking Details

Neutrale verpakking of met OEM -logo

Levertijd

5-8 werkdagen

Betalingscondities

L/C,Western Union,T/T

Levering vermogen

100000 rollen per maand

Verwante producten

High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

Krijg Beste Prijs

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Krijg Beste Prijs

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing

Krijg Beste Prijs

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing

Krijg Beste Prijs

Contacteer ons

Contact nu

Productomschrijving

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO58BF066-002

Dual-Head High-Frequency IC Test Probe

Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Product Images

Detailed Component Illustration

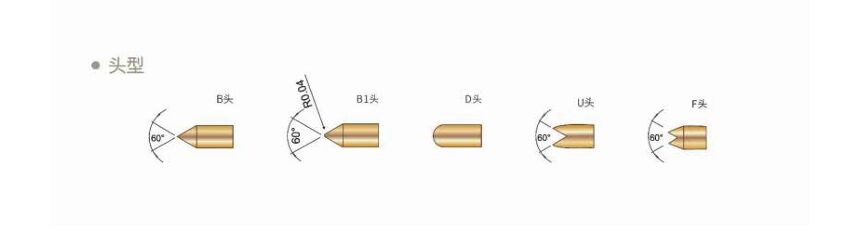

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment

Contact us to request samples or a quotation for your specific application requirements.
