Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Double-head test probe for IC testing

Spring contact pin with warranty

YOUFU UF-FTO55FD030-002 test probe

Plaats van herkomst:

China

Merknaam:

WINNER

Certificering:

ISO9100

Contacteer ons
Verzoek om een Citaat
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002
Productdetails
Productnaam:
veerproefsonde
loop:
PB, goudkleurig
Onderste plunjer:
BeCu/SK4, verguld
TOP plunjer:
SK4(Be Cu)/Verguld
Lente:
SWPB(SUS)/Verguld
Beschikbaarheid:
Aangepaste maten beschikbaar
Coating:
Verguld met goud
Huidige beoordeling:
3A
Neem contact op met Weerstand:
Maximaal 50 MOhm
Bandbreedte:
-0,19 dB @ 19,6 GHz
inductie:
1,15 nH
Captance:
1,41 pF
Volledige slag:
0,7 mm
Nominale slag:
0,5 MM
Vlamkracht:
25 gram bij 0,5 mm
De mechanische levensduur is overschreden:
200k
Markeren:

Double-head test probe for IC testing

,

Spring contact pin with warranty

,

YOUFU UF-FTO55FD030-002 test probe

Betaling & het Verschepen Termijnen
Min. bestelaantal
3000 pccs
Prijs
999
Verpakking Details
Neutrale verpakking of met OEM -logo
Levertijd
5-8 werkdagen
Betalingscondities
L/C,Western Union,T/T
Levering vermogen
100000 rollen per maand
Verwante producten
Goede prijs High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device online

High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

Krijg Beste Prijs
Goede prijs Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 online

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Krijg Beste Prijs
Goede prijs Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing online

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing

Krijg Beste Prijs
Goede prijs Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing online

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing

Krijg Beste Prijs
Contacteer ons
Contact nu
Productomschrijving
Dual-Head High-Frequency IC Test Probe YOUFU UF-FTO55FD030-002
High Quality Switch Contact Pin Test Probe YF DE2-055BB30-01C0. Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities.
Key Product Features
  • High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
  • Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
  • Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
  • Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory
Product Images
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 0





Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 1


Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 2

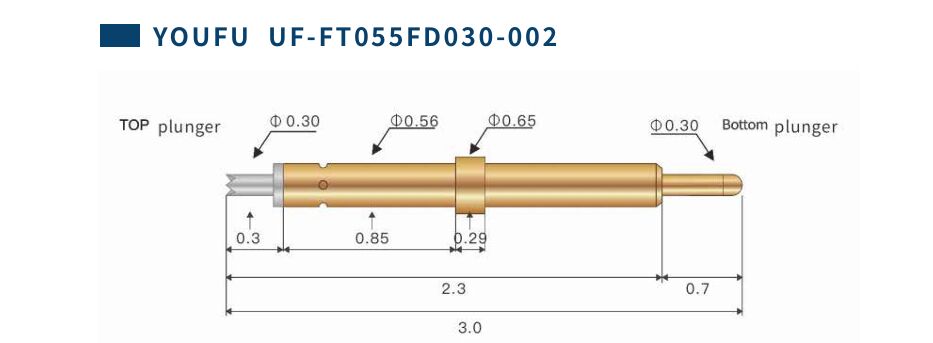

Detailed Component Illustration
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 3

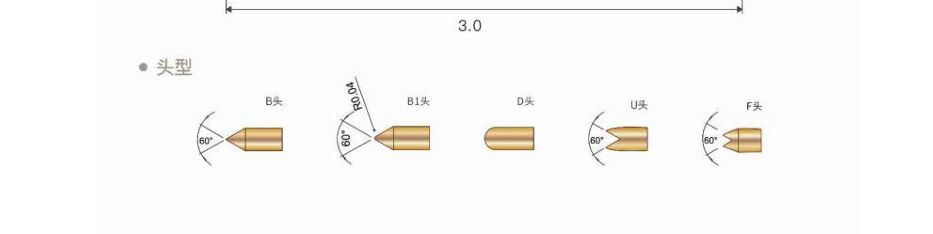

Comparison of different test probe tip types and configurations
Customization Options
SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Manufacturing Process
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 4
Our probe manufacturing facility
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 5
Quality control inspection
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 6
Packaged probes ready for shipment
