Name: Double plunger, push fit test probe for fine pitch components.
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Huis > producten > Vroegproefsonden >

Double plunger, push fit test probe for fine pitch components.

double plunger test probe

push fit test probe

fine pitch spring probe

Plaats van herkomst:

China

Merknaam:

WINNER

Certificering:

ISO9100

Contacteer ons

Verzoek om een Citaat

Double plunger, push fit test probe for fine pitch components.

Productdetails

Productnaam:

veerproefsonde

loop:

PB, goudkleurig

Onderste plunjer:

BeCu/SK4, verguld

TOP plunjer:

SK4(Be Cu)/Verguld

Lente:

SWPB(SUS)/Verguld

Beschikbaarheid:

Aangepaste maten beschikbaar

Coating:

Verguld met goud

Huidige beoordeling:

Neem contact op met Weerstand:

Maximaal 100 MOhm

Bandbreedte:

-0,27 dB @ 19,6 GHz

inductie:

1,45 nH

Captance:

2,01 pF

Volledige slag:

2,0 mm

Nominale slag:

1,0 mm

Vlamkracht:

30 gram@1,0 mm

De mechanische levensduur is overschreden:

200k

Markeren:

double plunger test probe

push fit test probe

fine pitch spring probe

Betaling & het Verschepen Termijnen

Min. bestelaantal

3000 pccs

Prijs

999

Verpakking Details

Neutrale verpakking of met OEM -logo

Levertijd

5-8 werkdagen

Betalingscondities

L/C,Western Union,T/T

Levering vermogen

100000 rollen per maand

Verwante producten

Gold Plated High Durability Spring Test Probe

Krijg Beste Prijs

Double plunger, push fit test probe for fine pitch components.

Krijg Beste Prijs

Gold Plated High Durability Spring Test Probe | Custom Sizes Pogo Pin for Electronic Testing

Krijg Beste Prijs

Gold Plated Spring Test Probe with 1A Current Rating and Custom Sizes for BGA Testing

Krijg Beste Prijs

Contacteer ons

Contact nu

Productomschrijving

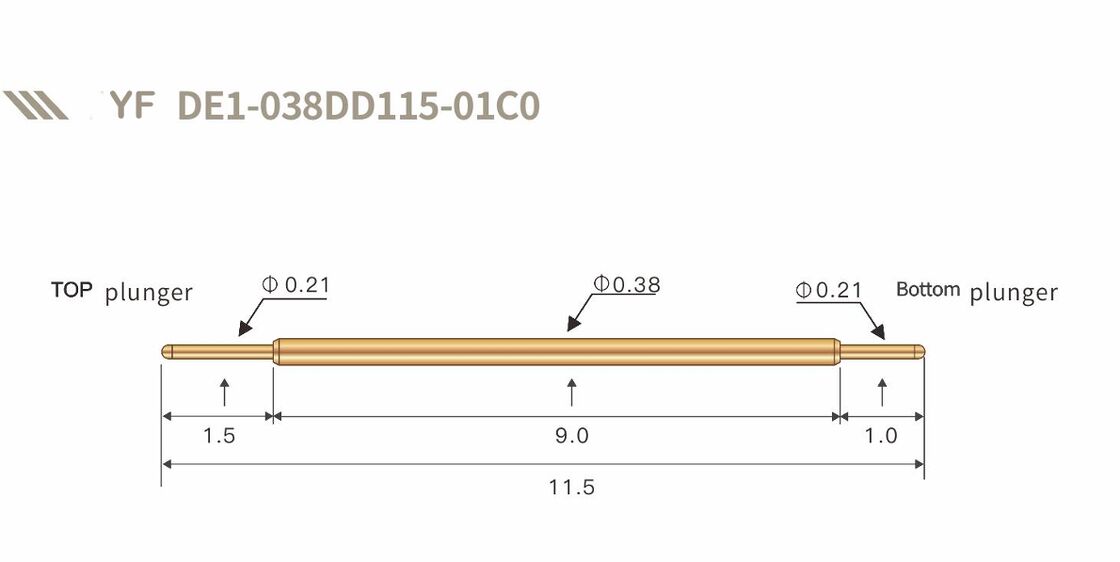

Electric Cable Switching Probe YF DE1-038DD115-01C0

High Efficiency BGA Testing Probes - Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Production Specifications

Product Images

Detailed Component Illustration

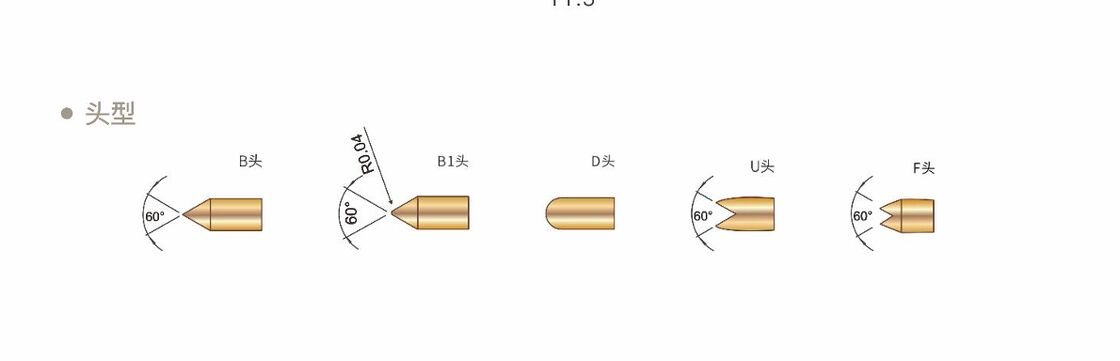

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
